LOFT TV SOCKET WHITE SURFACE-MOUNT MIDDLE JLM

Loft is an enhanced version of our proven line of electrical fittings, now also available in surface-mounted design. It combines timeless elegance with modern aesthetics, giving interiors a unique character.

Our Loft products stand out with design, durability, and high-quality craftsmanship. Thanks to modern technologies, the Loft fittings are not only visually appealing but also functional and built to withstand everyday use.

With an attractive price, the Loft series is a competitive alternative to traditional solutions, offering quality at an affordable cost.

Product Information

Socket sold complete with surface-mounted box.

Please pay attention to the type of factory-mounted box when creating multi-element sets:

• Single – fully round box, can be installed as a standalone element

• End – box with one cut edge, used at the beginning or end of a multi-element configuration

• Middle – box with two cut edges, used as a connecting element in multi-element sets

Example configurations:

• 2-element set: 2 end boxes

• 3-element set: 2 end + 1 middle

• 4-element set: 2 end + 2 middle

• Larger sets: e.g., 5, 6 elements, following the same pattern

Specifications

• Material: plastic

• Color: white

• Mounting: surface-mounted

• Voltage: 230V

• Diameter at wall contact: 81 mm

• Total height of surface-mounted part: 48 mm

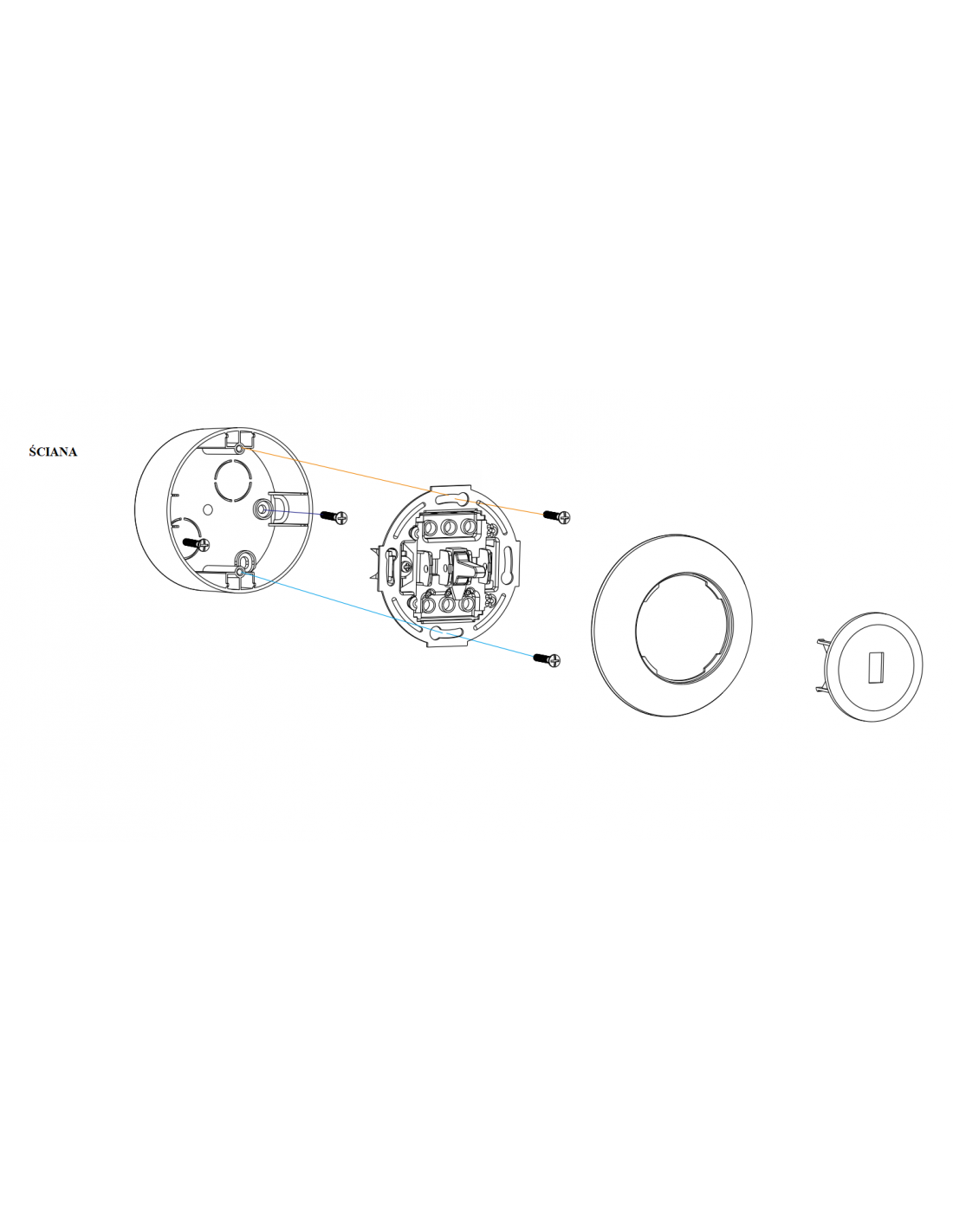

Installation

1. Mount the surface box to the wall using appropriate tools (e.g., wall plugs)

2. Remove the front (sockets: unscrew, switches: gently pry the clips)

3. Screw the insert into the mounted box

4. Attach the frame and replace the front cover

Additional Offerings

• Flush-mounted switches

• Flush-mounted sockets: 230V, telephone, computer, TV/antenna

• Middle and end frames

About JLM LUX RETRO

Manufacturer of exclusive porcelain and plastic 230V electrical fittings, including switches, sockets, frames, boxes, cable holders, lighting fixtures, ceiling roses, cable glands, bulbs, braided cables, and wall lamps.

With years of experience and continuous development, JLM LUX RETRO consistently expands its base of satisfied customers.
